DN15 To DN2000 CS SS BS10 FLANGE BS 4504 PN10 PN16 ST37.2 Hot Dip Galvanized

Brand Name : XF

Model Number : DN15-DN2000

Certification : EN10204 3.1 ISO9001 , PED AND AD2000 W0

Place of Origin : CHINA

MOQ : 1PCS

Price : USD 1-100 One PCS

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000TONS ONE MONTH

Delivery Time : 15-30DAYS

Packaging Details : PLYWOODEN AND PALLET

Produce Method : FORGED

Standard : BS4504

Pressure : PN6,PN10;PN16;PN25;PN40;PN63;PN100 BS10 TABLE D , BS10 TABLE E

Size range : DN15-DN2000

Flange type : Plate flange , Blind , Slip on , Welding Neck,Threaded flange

Material : Carbon steel A105; C22.8; ST37.2; S235JR; stainless steel 304/304L ; 316/316L;

Coating : Black Paint , Yellow Paint , Hot Galvanized , Cold Galvanized And Oil

Packing : Seay Worthy Plywood Cases or Pallet

Contact Now

BS4504 PN10, PN16 PLATE FLANGE ,BLIND SLIP ON AND WELDED NECK FLANGE WITH HOT DIP GALVANIZED

Product Introducting

Product Hot forging steel flanges
Standard BS4504
Flange type 101 PLATE; 105 BLIND; 111 WELDING NECK; 112 SLIP ON; 113 THREADED BS10 TABLE D , TALE E, TABLE F , TABLE H
Size range DN10-DN2000
Pressure PN6; PN10;PN16;PN25;PN40;PN63;PN100
Material carbon steel A105; C22.8; ST37.2; S235JR; stainless steel 304/304L ; 316/316L;
Packing seay worthy plywood cases or pallet

Product: Hot forging steel flanges

Standard: BS4504

Flange type: 101 PLATE; 105 BLIND; 111 WELDING NECK; 112 SLIP ON; 113 THREADED

Size range: DN10-DN2000

Pressure: PN6; PN10;PN16;PN25;PN40;PN63;PN100

Material: carbon steel A105; C22.8; ST37.2; S235JR; stainless steel 304/304L ; 316/316L;

Packing: seay worthy plywood cases or pallet

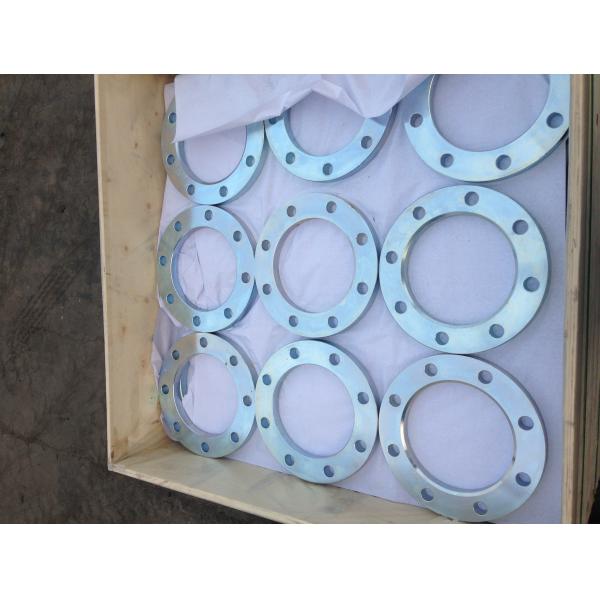

DN15 To DN2000 CS SS BS10 FLANGE BS 4504 PN10 PN16 ST37.2 Hot Dip Galvanized

DN15 To DN2000 CS SS BS10 FLANGE BS 4504 PN10 PN16 ST37.2 Hot Dip GalvanizedDN15 To DN2000 CS SS BS10 FLANGE BS 4504 PN10 PN16 ST37.2 Hot Dip Galvanized

BS 10 Flange Dimensions

BS 10 2Table D Flange Dimensions

Nominal O.D of Dia. of Dia. of No. of Dia. of Thickness
Pipe size Pipe Flange Bolt Circle Bolt Bolt
1/2" 21.3 95.3 66.7 4 12.7 4.8
3/4" 26.7 101.6 73.0 4 12.7 4.8
1" 33.4 114.3 82.6 4 12.7 4.8
1 1/4" 42.2 120.7 87.6 4 12.7 6.4
1 1/2" 48.3 133.4 98.4 4 12.7 6.4
2" 60.3 152.4 114.3 4 15.9 7.9
2 1/2" 73.0 165.1 127.0 4 15.9 7.9
3" 88.9 184.2 146.1 4 15.9 9.5
3 1/2" 101.6 203.2 165.1 4 15.9 9.5
4" 114.3 215.9 177.8 4 15.9 9.5
5" 141.3 254.0 209.6 8 15.9 12.7
6" 168.3 279.4 228.6 8 15.9 12.7
7" 190.5 304.8 260.4 8 15.9 12.7
8" 219.1 336.6 292.1 8 15.9 12.7
9" 244.5 368.3 323.9 8 15.9 15.9
10" 273.0 406.4 355.6 8 19.1 15.9
12" 323.9 457.2 406.4 12 19.1 15.9
14" 355.6 527.1 469.9 12 22.2 19.1
16" 406.4 577.9 520.7 12 22.2 19.1
18" 457.2 641.4 584.2 12 22.2 22.2
20" 508.0 704.9 641.4 16 22.5 25.4
24" 609.6 825.5 755.7 16 25.4 28.6

BS 10 Table E Flange Dimensions

Nominal Dia. of Dia. of No. of Dia. of Thickness
Pipe Size Flange Bolt Circle Bolt Bolt
1/2" 95.3 66.7 4 12.7 6.4
3/4" 101.6 73.0 4 12.7 6.4
1" 114.3 82.6 4 12.7 7.1
1 1/4" 120.7 87.3 4 12.7 7.9
1 1/2" 133.4 98.4 4 12.7 8.7
2" 152.4 114.3 4 15.9 9.5
2 1/2" 165.1 127.0 4 15.9 10.3
3" 184.2 146.1 4 15.9 11.1
3 1/2" 203.2 165.1 8 15.9 11.9
4" 215.9 177.8 8 15.9 12.7
5" 254.0 209.6 8 15.9 14.3
6" 279.4 228.6 8 19.1 17.5
7" 304.8 260.4 8 19.1 19.1
8" 336.6 292.1 8 19.1 19.1
9" 368.3 323.9 12 19.1 20.6
10" 406.4 355.6 12 19.1 22.2
12" 457.2 406.4 12 22.2 25.4
14" 527.2 469.9 12 22.2 25.4
16" 577.9 520.7 12 22.2 25.4
18" 641.4 584.2 16 22.2 28.6
20" 704.9 647.4 16 22.2 31.8
24" 825.5 755.7 16 25.4 38.1

BS 10 Table F Flange Dimensions

Nominal O.D. of Dia of Dia of No. of Dia. of Thickness
Pipe Size Pipe Flange Bolt Circle Bolt Bolt
1/2" 21.3 95.3 66.7 4 12.7 9.5
3/4" 26.7 101.6 73.0 4 12.7 9.5
1" 33.4 120.7 87.3 4 15.9 9.5
1 1/4" 42.2 133.4 98.4 4 15.9 12.7
1 1/2" 48.3 139.7 104.8 4 15.9 12.7
2" 60.3 165.1 127.0 4 15.9 15.9
2 1/2" 73.0 184.2 146.1 8 15.9 15.9
3" 88.9 203.2 165.1 8 15.9 15.9
3 1/2" 101.6 215.9 177.8 8 15.9 19.1
4" 114.3 228.6 190.5 8 15.9 19.1
5" 141.3 279.4 235.0 8 19.1 22.2
6" 168.3 304.8 260.4 12 19.1 22.2
7" 190.3 336.6 292.1 12 19.1 22.2
8" 219.1 368.3 323.9 12 19.1 25.4
9" 244.5 406.4 355.6 12 22.2 25.4
10" 273.0 431.8 381.0 12 22.2 25.4
12" 323.0 489.0 438.2 16 22.2 28.6
14" 355.6 552.5 495.3 16 25.4 31.8
16" 406.4 609.6 552.5 20 25.4 31.8
18" 457.2 673.1 609.6 20 28.6 34.9
20" 508.0 736.6 673.1 24 28.6 38.1
24" 609.6 850.9 781.1 24 31.8 41.3

BS 10 Table H Flange Dimensions

Nominal Dia of Dia. of No. of Dia. of Thickness
Pipe size Flange Bolt Circle Bolt Bolt
1/2" 114.3 82.6 4 15.9 12.7
3/4" 114.3 82.6 4 15.9 12.7
1" 120.78 87.3 4 15.9 14.3
1 1/4" 133.4 98.4 4 15.9 17.5
1 1/2" 139.7 104.8 4 15.9 17.5
2" 165.1 127.0 4 15.9 19.1
2 1/2" 184.2 146.1 8 15.9 19.1
3" 203.2 165.1 8 15.9 22.2
3 1/2" 215.9 177.8 8 15.9 22.2
4" 228.6 190.5 8 15.9 25.4
5" 279.4 235.0 8 19.1 28.6
6" 304.8 260.4 12 19.1 28.6
7" 336.6 292.1 12 19.1 31.8
8" 368.3 323.9 12 19.1 31.8
9" 406.4 355.6 12 22.2 34.9
10" 431.8 381.0 12 22.2 34.9
12" 489.0 438.2 16 22.2 38.1
14" 552.5 495.3 16 25.4 41.3
16" 609.6 552.5 20 25.4 44.5
18" 673.1 609.6 20 28.6 47.6
20" 736.6 673.1 24 28.6 50.8
24" 850.9 781.1 24 31.8 57.2

BS 10 Flanges Dimensions in mm, BS 10 Flanges Sizes

NOMINAL BORE
15
FLANGE DIAMETER in mm
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 3 3/4" / 95 2 5/8" / 67 4 1/2" 9/16" / 14 3/8" / 10
Table E 3 3/4" / 95 2 5/8" / 67 4 1/2" 9/16" / 14 3/8" / 10
Table F 3 3/4" / 95 2 5/8" / 67 4 1/2" 9/16" / 14 3/8" / 10
Table H 4 1/2" / 114 3 1/4" / 83 4 5/8" 11/16" / 17 1/2" / 13
Table J 4 1/2" / 114 3 1/4" / 83 4 5/8" 11/16" / 17 5/8" / 16
Table K 4 1/2" / 114 3 1/4" / 83 4 5/8" 11/16" / 17 3/4" / 19
NOMINAL BORE
20
FLANGE DIAMETER in mm
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 4" / 102" 2 7/8" / 73" 4 1/2" 9/16" / 14" 3/8" / 10"
Table E 4" / 102" 2 7/8" / 73" 4 1/2" 9/16" / 14" 3/8" / 10"
Table F 4" / 102" 2 7/8" / 73" 4 1/2" 9/16" / 14" 3/8" / 10"
Table H 4 1/2" / 114" 3 1/4" / 83" 4 5/8" 11/16" / 17" 1/2" / 13"
Table J 4 1/2" / 114" 3 1/4" / 83" 4 5/8" 11/16" / 17" 5/8" / 16"
Table K 4 1/2" / 114" 3 1/4" / 83" 4 5/8" 11/16" / 17" 3/4" / 19"
NOMINAL BORE
25
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 4 1/2" / 114 3 1/4" / 83 4 1/2" 9/16" / 14 3/8" / 10
Table E 4 1/2" / 114 3 1/4" / 83 4 1/2" 9/16" / 14 3/8" / 10
Table F 4 3/4" / 121 3 7/16" / 87 4 5/8" 9/16" / 14 3/8" / 10
Table H 4 3/4" / 121 3 7/16" / 87 4 5/8" 11/16" / 17 9/16" / 14
Table J 4 3/4" / 121 3 7/16" / 87 4 5/8" 11/16" / 17 3/4" / 19
Table K 5" / 127 3 3/4" / 95 4 5/8" 11/16" / 17 7/8" / 22
NOMINAL BORE
32
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 4 3/4" / 121 3 7/16" / 87 4 1/2" 9/16" / 14 1/2" / 13
Table E 4 3/4" / 121 3 7/16" / 87 4 1/2" 9/16" / 14 1/2" / 13
Table F 5 1/4" / 133 3 7/8" / 98 4 5/8" 11/16" / 17 1/2" / 13
Table H 5 1/4" / 133 3 7/8" / 98 4 5/8" 11/16" / 17 11/16" / 17
Table J 5 1/4" / 133 3 7/8" / 98 4 5/8" 11/16" / 17 3/4" / 19
Table K 5 1/4" / 133 3 7/8" / 98 4 5/8" 11/16" / 17 7/8" / 22
NOMINAL BORE
40
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 5 1/4" / 133 3 7/8" / 98 4 1/2" 9/16" / 14 1/2" / 13
Table E 5 1/4" / 133 3 7/8" / 98 4 1/2" 9/16" / 14 1/2" / 13
Table F 5 1/2" / 140 4 1/8" / 105 4 5/8" 11/16" / 17 1/2" / 13
Table H 5 1/2" / 140 4 1/8" / 105 4 5/8" 11/16" / 17 11/16" / 17
Table J 5 1/2" / 140 4 1/8" / 105 4 5/8" 11/16" / 17 7/8" / 22
Table K 6" / 152 4 1/2" / 114 4 3/4" 7/8" / 22 1" / 25
NOMINAL BORE
50
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 6" / 152 4 1/2" / 114 4 5/8" 11/16" / 17 9/16" / 14
Table E 6" / 152 4 1/2" / 114 4 5/8" 11/16" / 17 9/16" / 14
Table F 6 1/2" / 165 5" / 127 4 5/8" 11/16" / 17 5/8" / 16
Table H 6 1/2" / 165 5" / 127 4 5/8" 11/16" / 17 3/4" / 19
Table J 6 1/2" / 165 5" / 127 4 3/4" 7/8" / 22 1" / 25
Table K 6 1/2" / 165 5" / 127 8 5/8" 11/16" / 17 1" / 25
NOMINAL BORE
65
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 6 1/2" / 165 5" / 127 4 5/8" 11/16" / 17 9/16" / 14
Table E 6 1/2" / 165 5" / 127 4 5/8" 11/16" / 17 9/16" / 14
Table F 7 1/4" / 184 5 3/4" / 146 8 5/8" 11/16" / 17 5/8" / 16
Table H 7 1/4" / 184 5 3/4" / 146 8 5/8" 11/16" / 17 3/4" / 19
Table J 7 1/4" / 184 5 3/4" / 146 8 3/4" 7/8" / 22 1" / 25
Table K 7 1/4" / 184 5 3/4" / 146 8 3/4" 7/8" / 22 1 1/8" / 29
NOMINAL BORE
80
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 8 1/2" / 216 7" / 178 4 5/8" 11/16" / 17 11/16" / 17
Table E 8 1/2" / 216 7" / 178 8 5/8" 11/16" / 17 11/16" / 17
Table F 9" / 229 7 1/2" / 191 8 5/8" 11/16" / 17 3/4" / 19
Table H 9" / 229 7 1/2" / 191 8 5/8" 11/16" / 17 1" / 25
Table J 9" / 229 7 1/2" / 191 8 3/4" 7/8" / 22 1 3/8" / 35
Table K 9 1/2" / 241 7 3/4" / 197 8 7/8" 1" / 25 1 3/8" / 35
NOMINAL BORE
100
FLANGE DIAMETER
PCD
BOLTS
BOLTSIZE
HOLE SIZE
THICKNESS
Table D 8 1/2" / 216 7" / 178 4 5/8" 11/16" / 17 11/16" / 17
Table E 8 1/2" / 216 7" / 178 8 5/8" 11/16" / 17 11/16" / 17
Table F 9" / 229 7 1/2" / 191 8 5/8" 11/16" / 17 3/4" / 19
Table H 9" / 229 7 1/2" / 191 8 5/8" 11/16" / 17 1" / 25
Table J 9" / 229 7 1/2" / 191 8 3/4" 7/8" / 22 1 3/8" / 35
Table K 9 1/2" / 241 7 3/4" / 197 8 7/8" 1" / 25 1 3/8" / 35

FAQ

1. who are we?
We are based in Hebei, China, start from 2001,sell to South Asia(7.69%),Southern Europe(7.69%),Northern Europe(7.69%),Central America(7.69%),Western Europe(7.69%),Eastern Asia(7.69%),Mid East(7.69%),Oceania(7.69%),Africa(7.69%),Southeast Asia(7.69%),Eastern Europe(7.69%),South America(7.69%),North America(7.69%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
flange,elbow,pipe fittings

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,JPY,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language Spoken:English,Chinese,Russian
